Professionally Preinstalled Kits for an Efficient Rebuild
EXPANDED COVERAGE NOW AVAILABLE!
PROBLEM
“It’s inconvenient and frustrating to order each part individually when rebuilding driveshafts, coupling shafts, and interaxle shafts in commercial vehicles.”
SOLUTION
With Spicer ReadyPack™ preassembled kits, you’ll benefit from streamlined ordering, less inventory hassle, and a quantifiable savings compared to purchasing the kit components individually.

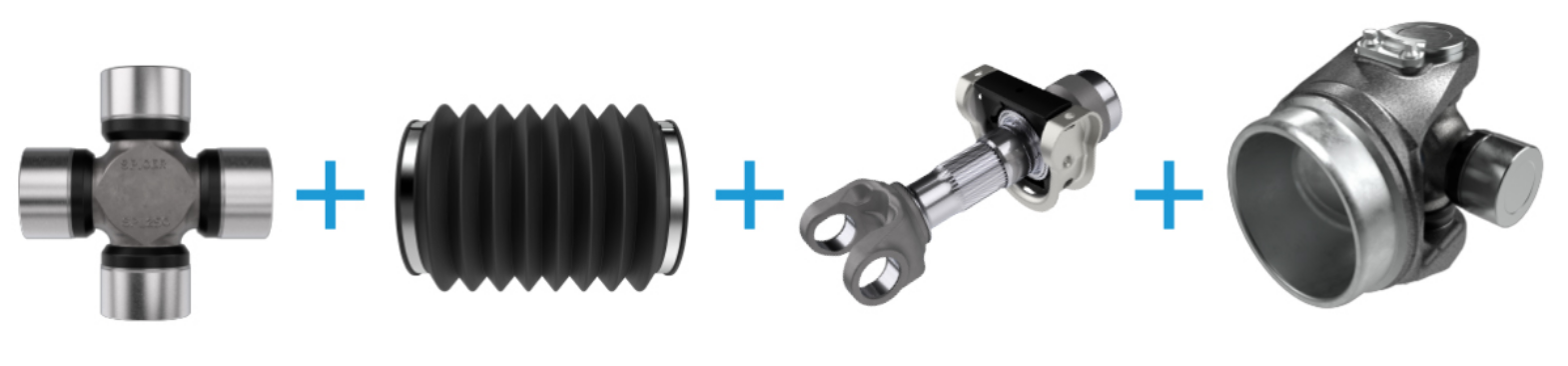

NEW SPL® Lite Kit (Representative images shown below)
Driveshaft Interaxle Kit (Representative images shown below)
Coupling Shaft Kit (Representative images shown below)
Don’t waste time and money ordering individual parts on your next rebuild.
Spicer ReadyPack™ preassembled kits for driveshafts, coupling shafts, and interaxle shafts support the efficiency of your business with streamlined ordering, and savings on inventory, labor, and your total investment. The Spicer ReadyPack kit arrives with u-joints that are professionally installed in the yoke shaft and in the tube yoke. Kits featuring SPL® u-joints come pre-greased with production lube.*
Save time and money and get everything you need for a thorough and lasting commercial vehicle shaft rebuild. For a complete rebuilt driveshaft that’s as good as or better than the OE parts it replaces, choose Genuine Spicer® tubing. Spicer is an OE-tubing provider and offers tubes in a variety of sizes to fit your application.

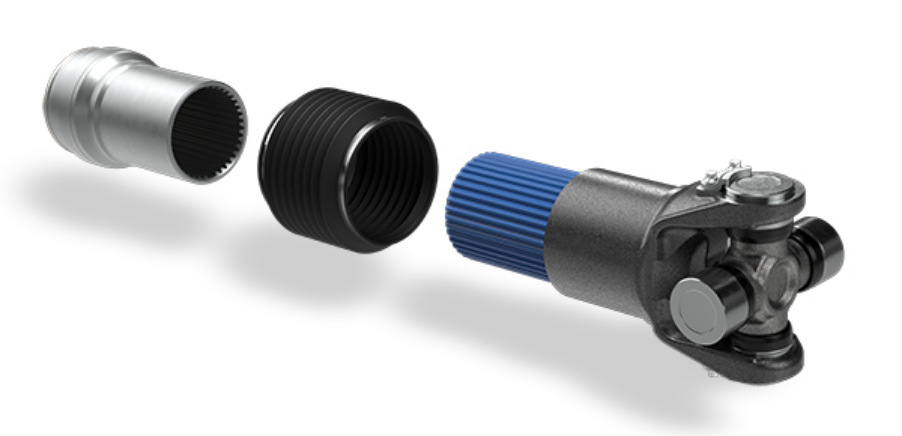

Spicer ReadyPack benefits:
- In-House Integration
- Serving All Vehicle Markets
- Able to Support Any Need
- Complete System Capabilities
Spicer ReadyPack™ Expanded Coverage:
More Convenience. More Value.
New! Expanded Coverage
We’ve increased ReadyPack coverage for your convenience with the addition of service-free options and SPL® Builder kits. Take a look at our new kits and see what you’re getting with every Spicer ReadyPack preassembled kit.
| Series | ReadyPack Part # | Base Part # | Description |
|---|---|---|---|
| SPL250 Lite | DB250C50F | 250CS50001F, 250CS50002F | SPL 250 Lite Coupling Shaft Kit |
| SPL250 Lite | DB250C20F | 250CS20001F, 250CS20002F | SPL 250 Lite Coupling Shaft Kit |
| SPL250 Lite | DB250C50 | 250CS50001, 250CS50002 | SPL 250 Lite Coupling Shaft Kit |
| SPL250 Lite | DB250C20 | 250CS20001, 250CS20002 | SPL 250 Lite Coupling Shaft Kit |
| SPL350 Lite | DB350C50F | 350CS50002F, 350CS50004F | SPL 350 Lite Coupling Shaft Kit |
| SPL350 Lite | DB350C20F | 350CS20002F, 350CS20004F | SPL 350 Lite Coupling Shaft Kit |
| SPL350 Lite | DB350C50 | 350CS50002, 350CS50004 | SPL 350 Lite Coupling Shaft Kit |
| SPL350 Lite | DB350C20 | 350CS20002, 350CS20004 | SPL 350 Lite Coupling Shaft Kit |
| SPL140 | DB140C54015 | 140CS54015 | Coupling Shaft Kit |
| SPL140 | DB140C54025 | 140CS54025 | Drive Shaft Kit |
| SPL170 | DB170C54005F | 170CS54005F | Coupling Shaft Kit |
| SPL170 | DB170I55002F | 170IA55002F | Interaxle Shaft Kit |
| SPL170 | DB170I55010F | 170IA55010F | Interaxle Shaft Kit |
| SPL170 | DB170C54005C | 170CS54005C | Coupling Shaft Kit |
| SPL170 | DB170I55001C | 170IA55001C | Interaxle Shaft Kit |
| SPL170 | DB170I55010C | 170IA55010C | Interaxle Shaft Kit |
| SPL170 | DB170C54046C | 170CS54046C | Coupling Shaft Kit |
| SPL250 | DB250C54043F | 250CS54043F | Coupling Shaft Kit |
| SPL250 | DB250I55001F | 250IA55001F | Interaxle Shaft Kit |
| SPL250 | DB250C54003C | 250CS54003C | Coupling Shaft Kit |
| SPL250 | DB250D55003C | 250DS55003C | Drive Shaft Kit |
| SPL250 | DB250C54024C | 250CS54024C | Coupling Shaft Kit |
| SPL250 | DB250I5019022 | 5019022 | Drive Shaft Kit |
| SPL350 | DB350C54001F | 350CS54001F | Coupling Shaft Kit |
| SPL350 | DB350D55001F | 350DS55001F | Drive Shaft Kit |
| SPL350 | DB350C54001 | 350CS54001 | Coupling Shaft Kit |
| SPL350 | DB350D55001 | 350DS55001 | Drive Shaft Kit |
| 1710 | DB1710C807369 | 807369 | Coupling Shaft Kit |
| 1710 | DB1710C810549 | 810549 | Coupling Shaft Kit |
| 1710 | DB1710D810588 | 810588 | Drive Shaft Kit |
| 1710 | DB1710I805358 | 805358 | Interaxle Shaft Kit |
| 1710 | DB1710I817264 | 817264 | Drive Shaft Kit |
| 1710 | DB1710I906354 | 906354 | Drive Shaft Kit |
| 1710 | DB1710C908018 | 908018 | Drive Shaft Kit |
| 1760 | DB1760C810661 | 810661 | Coupling Shaft Kit |
| 1760 | DB1760C910662 | 910662 | Coupling Shaft Kit |
| 1760 | DB1760D810652 | 810652 | Drive Shaft Kit |
| 1810 | DB1810C817099 | 817099 | Coupling Shaft Kit |
| 1810 | DB1810D5002266 | 5002266 | Drive Shaft Kit |
| 1810 | DB1810C822671 | 822671 | Coupling Shaft Kit |
| 1810 | DB1810C917098 | 917098 | Coupling Shaft Kit |
| 1810 | DB1810D817090 | 817090 | Drive Shaft Kit |
| 1810 | DB1810D817697 | 817697 | Drive Shaft Kit |
| 1810 | DB1810D917094 | 917094 | Drive Shaft Kit |
| 1810 | DB1810S808024-1 | 808024-1 | Short Couple Shaft Kit |
Click to view full list
Genuine Spicer® Tubing Delivers a Complete Rebuild
For a complete driveshaft rebuild, choose Spicer commercial vehicle tubing. Spicer is an OE-tubing provider and offers tube lengths ranging from 68 to 108 inches, with convenient 3-packs of 33-inch tubes now available to save you time and money. Recent packaging improvements on all tubes provide better protection for your purchase on its way to the shop.
| Tube Size | 10 Series | SPL® |
|---|---|---|
| 108" | X | X |
| 100" | X | X |
| 73" | X | X |
| 74" | X | |
| 68" | X | |
| New! 33" | X |
| Tubing Part # | Series | Long Description | Weight (lbs) |
|---|---|---|---|
| 120-30-3-3300B3 | SPL | 3 Piece Tubing Bulk Pack 4.960 x .118 | 61 |
| 120-30-4-3300B3 | SPL | 3 Piece Tubing Bulk Pack 5.059 x .167 | 82.01 |
| 120-30-5-3300B3 | SPL | 3 Piece Tubing Bulk Pack 5.118 x .197 | 95.99 |
| 120-30-6-3300B3 | SPL | 3 Piece Tubing Bulk Pack 5.196 x .236 | 113.01 |
Find where you can place your order on DanaAftermarket.com, Dana’s streamlined ecommerce platform, or check out our Where to Buy page now.
*Spicer ReadyPack SPL u-joints are pre-greased, while Spicer ReadyPack 10 Series u-joints must be greased before use.
