The illustrations below show appropriate measurements required to identify the most common styles of u-joints. We recommend using a caliper or micrometer to most accurately measure u-joints. Once you have recorded your measurements, click on the images below to select the appropriate style of u-joint you have. You will then be directed to The Expert to identify your u-joint kit by the dimensions you recorded.

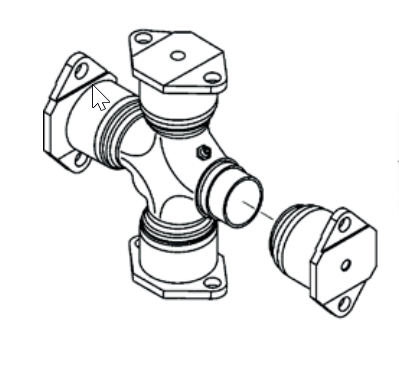

Bearing Plate

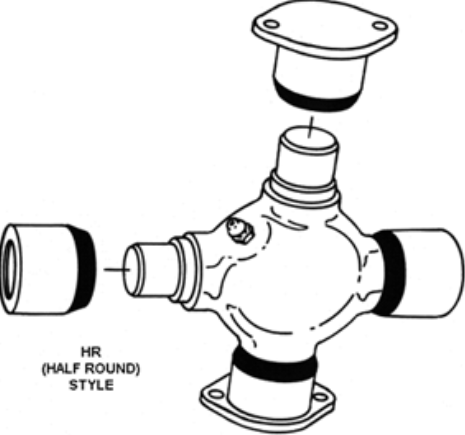

Bearing Plate / Wing™ Series  Half Round

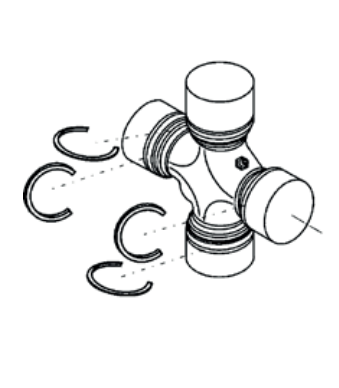

Inside Snap Ring

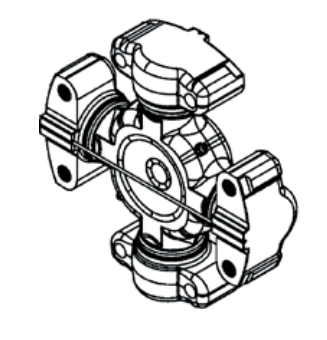

Inside Snap Ring / Wing Bearing

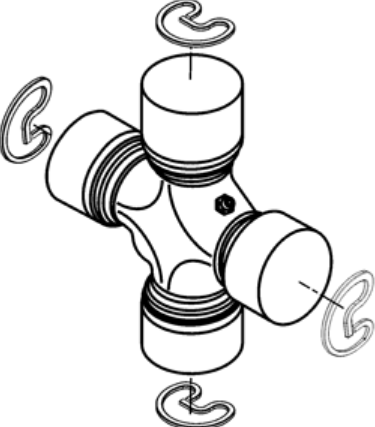

 Outside Snap Ring

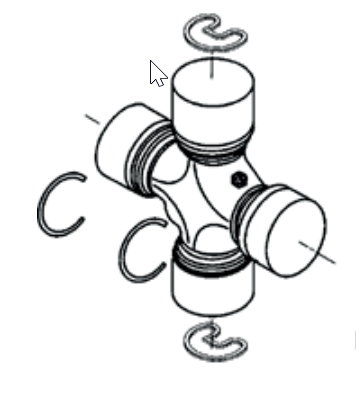

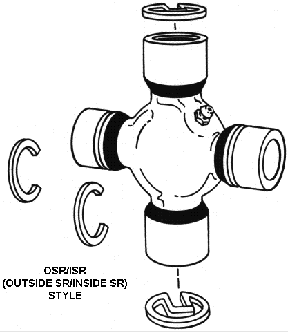

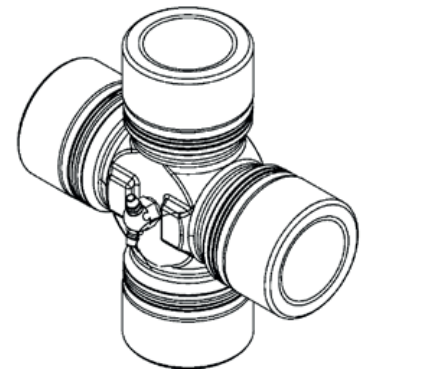

Outside Snap Ring / Inside Snap Ring  Outside Snap Ring / Wing™ Series  Spicer Life Series (SPL) (Spring Tab Style)

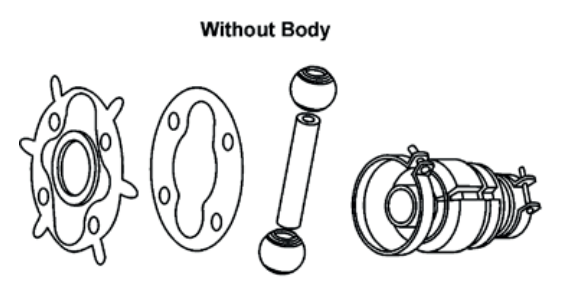

Wing™ Series Cap & Bolt Pot

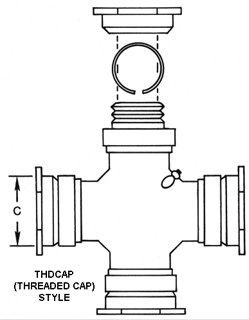

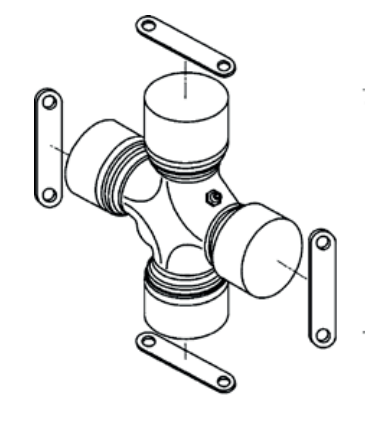

Threaded Cap Threaded Plate
