Spicer® Ring & Pinion Regear Bundles for 2020 and Newer Jeep® Gladiator® JT

Get your Jeep Gladiator JT ready to venture off the beaten path with bigger, heavier off-road tires and you’ll need larger ring and pinion gearing to match. Dana 44™ AdvanTEK^® axles can help you avoid premature part wear and handle higher torque loads, and Dana offers convenient bundles so you can complete the job and hit the trails. The resources found at SpicerParts.com/Calculators can also help you figure out just what you’ll need.

When it is time to regear your Jeep remember to demand Genuine Spicer Parts

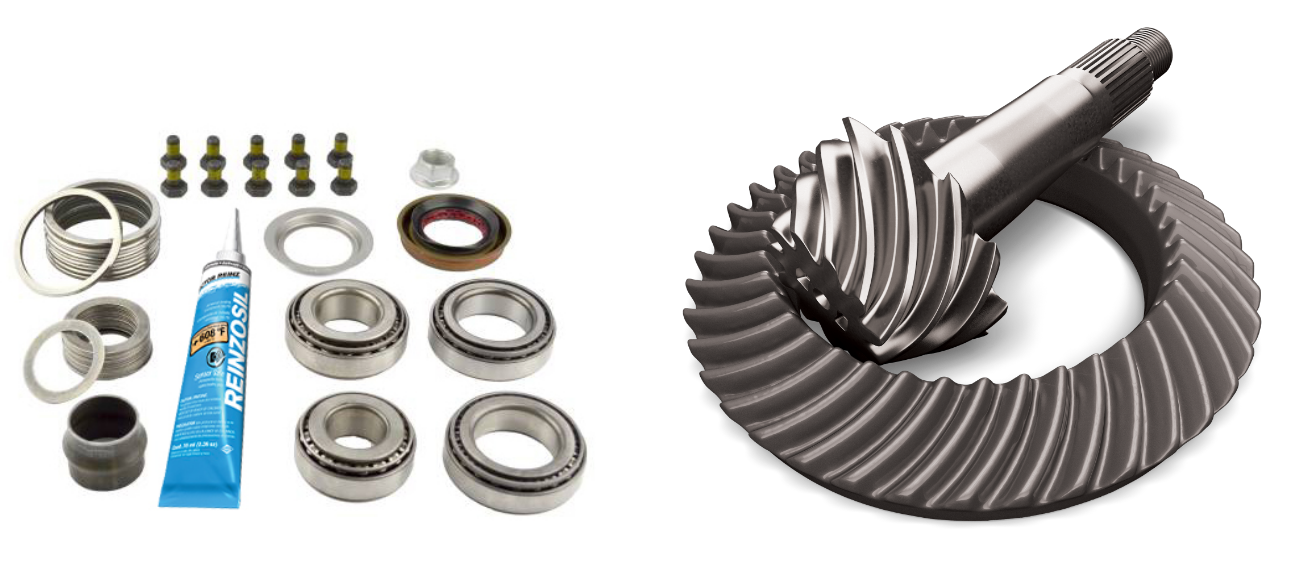

Spicer^® Ring & Pinion Upgrade Bundles for 2020 and Newer Jeep_® Gladiator JT with Dana 44™ AdvanTEK^® Axles

Spicer^® Bundle for the Gladiator^® JT 3.73 ratio

Description	Axle Model	Spicer Part #
			Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Front	10046055
Master Overhaul Kit	Dana 44™ AdvanTEK® Front	10040469
Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Rear	10062017
Master Overhaul Kit	Dana 44™ AdvanTEK® Rear	10040478

Spicer^® Bundle for the Gladiator^® JT 4.56 ratio

Description	Axle Model	Spicer Part #
			Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Front	10050939
Master Overhaul Kit	Dana 44™ AdvanTEK® Front	10040469
Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Rear	10067141
Master Overhaul Kit	Dana 44™ AdvanTEK® Rear	10040478

Spicer^® Bundle for the Gladiator^® JT 5.13 ratio

Description	Axle Model	Spicer Part #
			Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Front	10051004
Master Overhaul Kit	Dana 44™ AdvanTEK® Front	10040469
Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Rear	10067157
Master Overhaul Kit	Dana 44™ AdvanTEK® Rear	10040478

Spicer^® Bundle for the Gladiator^® JT 4.10 ratio

Description	Axle Model	Spicer Part #
			Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Front	10006435
Master Overhaul Kit	Dana 44™ AdvanTEK® Front	10040469
Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Rear	10062033
Master Overhaul Kit	Dana 44™ AdvanTEK® Rear	10040478

Spicer^® Bundle for the Gladiator^® JT 4.88 Ratio

Description	Axle Model	Spicer Part #
			Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Front	10051746
Master Overhaul Kit	Dana 44™ AdvanTEK® Front	10040469
Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Rear	10073110
Master Overhaul Kit	Dana 44™ AdvanTEK® Rear	10040478

Spicer^® Bundle for the Gladiator^® JT 5.38 Ratio

Description	Axle Model	Spicer Part #
			Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Front	10050979
Master Overhaul Kit	Dana 44™ AdvanTEK® Front	10040469
Spicer® Ring & Pinion	Dana 44™ AdvanTEK® Rear	10067204
Master Overhaul Kit	Dana 44™ AdvanTEK® Rear	10040478

Watch Dana Aftermarket Engineering Manager Zack Heisey go through a Ring and Pinion Gear Swap for the Jeep_® Wrangler^® JL in this episode of Dana Crate Axle Garage.

Front and Rear Axle Components for Jeep_® Gladiator^® JT

Spicer^® FRONT Axle Components for Dana 44™ AdvanTEK^® Axles on the Jeep_® Gladiator^® JT

Description	Spicer Part #
		RTV Sealant (2.8 oz.)	38615
Friction Modifier/POSI Additive	43161
Inner Pinion Bearing Kit	10071953
Outer Pinion Bearing Kit	10040461
Pinion Shim Kit	10040475
Differential Bearing Kit	10071915
Differential Bearing Shim Kit	10040476
Collapsible Spacer	10008364
Pinion Nut	2009625
Ring Gear Bolts	10008806
Ring Gear Bolts - 10 pk.	10040474
Pinion Oil Seal	10010013
Carrier Cover Bolts	10050881
Carrier Cover Bolts - 12 pk.	10062575
Axle Shaft Nut	2008564
Axle Shaft Snap Ring	10025587
Axle Shaft Tube Guide	10019730
Axle Shaft Deflector	10062341
FAD Removal Spacer Kit	10045078
Companion Flange Assy.	10009588
Transfer Case End Yoke (1310 Series)	10016266*
Transfer Case End Yoke (1350 Series)	10016268*

Spicer^® REAR Axle Components for Dana 44™ AdvanTEK^® Axles on the Jeep_® Gladiator^® JT

Description	Spicer Part #
		RTV Sealant (2.8 oz.)	38615
Friction Modifier/POSI Additive	43161
Inner Pinion Bearing Kit	10071953
Outer Pinion Bearing Kit	2014578-2
Pinion Bearing Shim Kit	10040475
Differential Bearing Kit	10071915
Differential Bearing Shim Kit	10040476
Collapsible Spacer	10008361
Pinion Seal	10039487
Companion Flange	10020110
Pinion Nut	2009625
Transfer Case End Yoke (1310 Series)	10016266*
Transfer Case End Yoke (1350 Series)	10016268*
Differential Cover Bolts	10050881
Ring Gear Bolts	10008806
Ring Gear Bolts - 10 pk.	10040474
Wheel Bearing Retainer - Narrow Track	10032011
Wheel Bearing Retainer - Wide Track	10032012
Wheel Bearing Assy.	565903-1
Outboard Axle Shaft Seal	10026762
Axle Shaft Bolt	10047625

Jeep_® Gladiator^® JT Torque Specifications

Model	Pinion Bearing Preload (Inch/Lbs)	Backlash (.001 Inch)	Ring Gear Bolt Torque (Foot/Lbs)	Bearing Cap Torque (Foot/Lbs)
					Dana 44 JL Front	15-20	6-10	135	70
Dana 44 JL Rear	14-19	6-10	135	70
