Spicer Driveshafts for Improved Strength in Your Jeep®

Dana provides Jeep® owners with an upgrade for their Jeep Wrangler JK, JL or Gladiator JT, with these high-performance 1310 and 1350 Series Spicer® driveshafts. Find out why the Spicer name has been trusted for generations, and why our innovations will continue to inspire off-roaders to push the boundaries for years to come.

  • Engineered with a smaller diameter for improved clearance to the exhaust
  • Include a direct-fit bolt-in flange
  • Provide ease of installation and a better off-road experience
  • Optimized for 0"- 6" lifts
  • Deliver strength that can exceed even original equipment
  • Tubes are thicker for added strength

Note: To ensure the proper fitment, it is best to measure your application after any axle and lift installation. The below information is a general guide for selecting the proper driveshafts.

  • JK driveshafts accommodate 2"- 4" of lift
  • JL driveshafts accommodate 0"- 6" of lift
  • JT driveshafts accommodate 0"- 6" of lift

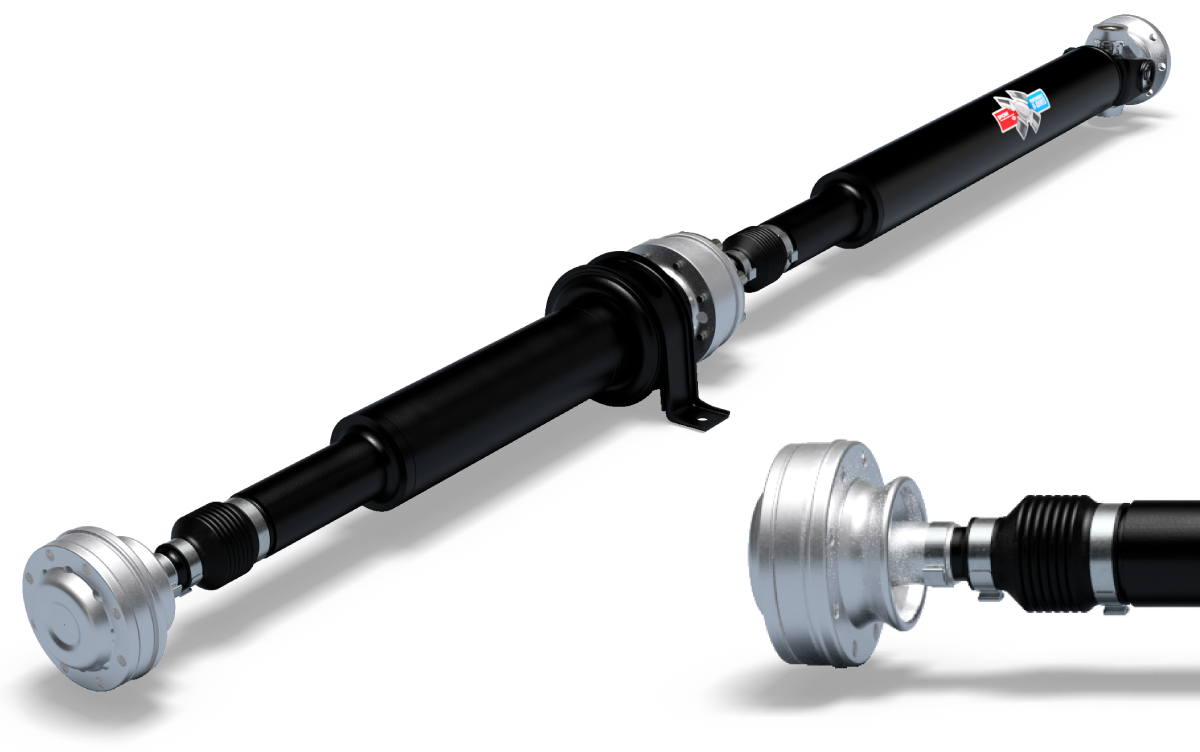

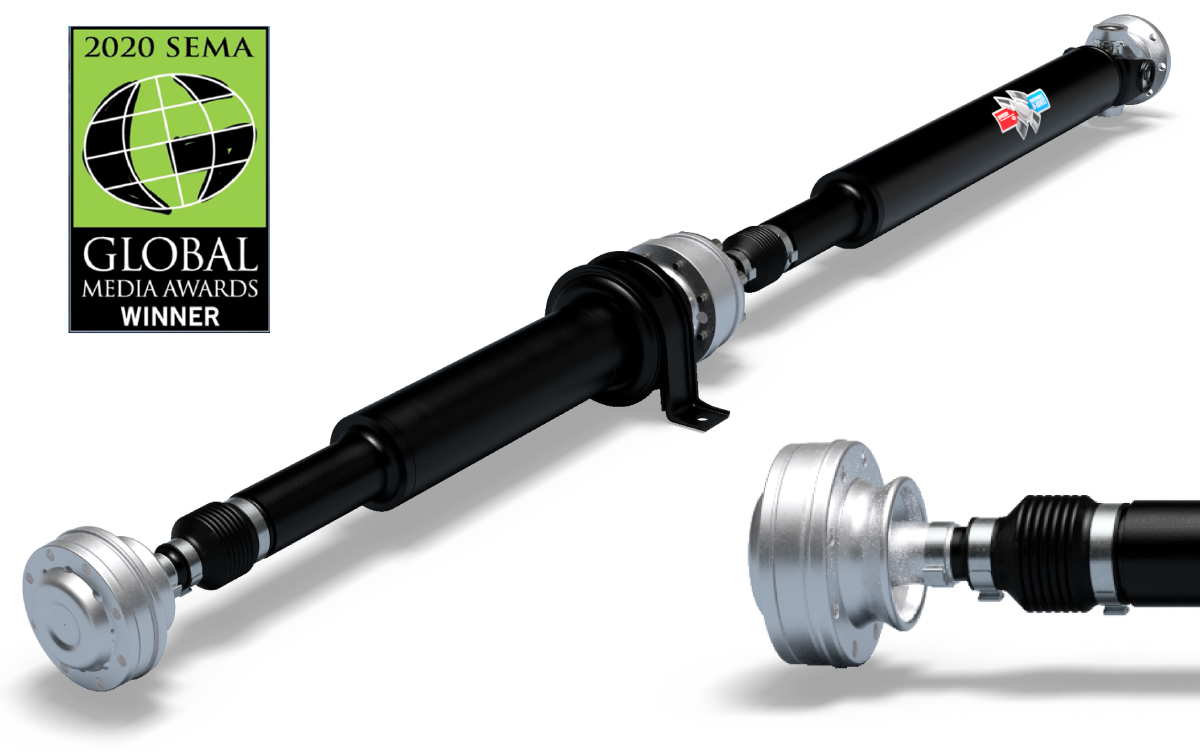

Two-Piece 1350 Series Driveshaft with CV Joints for the Jeep Gladiator JT

Driveshaft for the Jeep JT

The new two-piece Spicer® 1350 series driveshaft for the Jeep Gladiator JT is engineered as a direct bolt-in solution for increased strength. Featuring several upgrades designed for added durability on the trail, this driveshaft includes 3" DOM tubing. Dana gives you everything you need for the upgrade, including a center bearing drop bracket kit designed to accommodate lifted vehicles.

  • 100% bolt-in direct fit
    • All hardware included, no adapter flange or new yokes needed
    • High angle flange yoke at the axle
  • Service free means more driving and less maintenance
    • Lubed-for-life SPL® 1350 series u-joint
    • Permanently sealed high temperature CV boots
    • Dana-designed CV joint with high performance HNBR boot
  • Two-piece design
    • Ensures no critical speed issues
    • Allows for smaller OD, yet high strength 3×0.083 DOM tubing
    • Allows for best possible break over angle

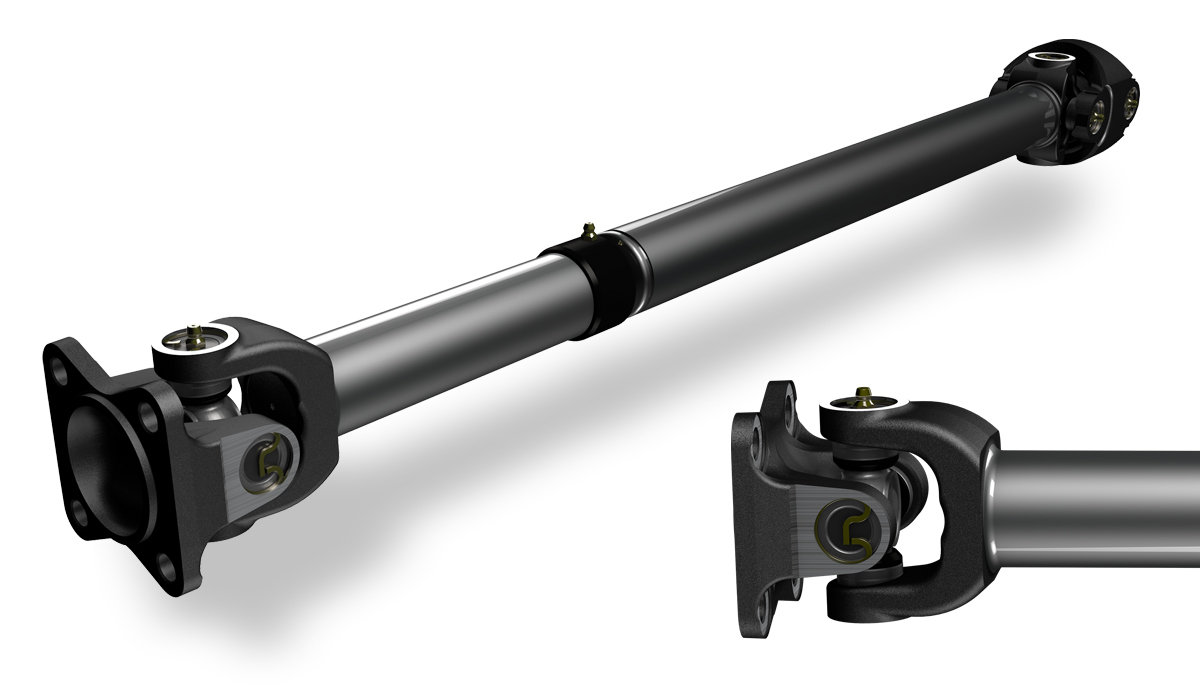

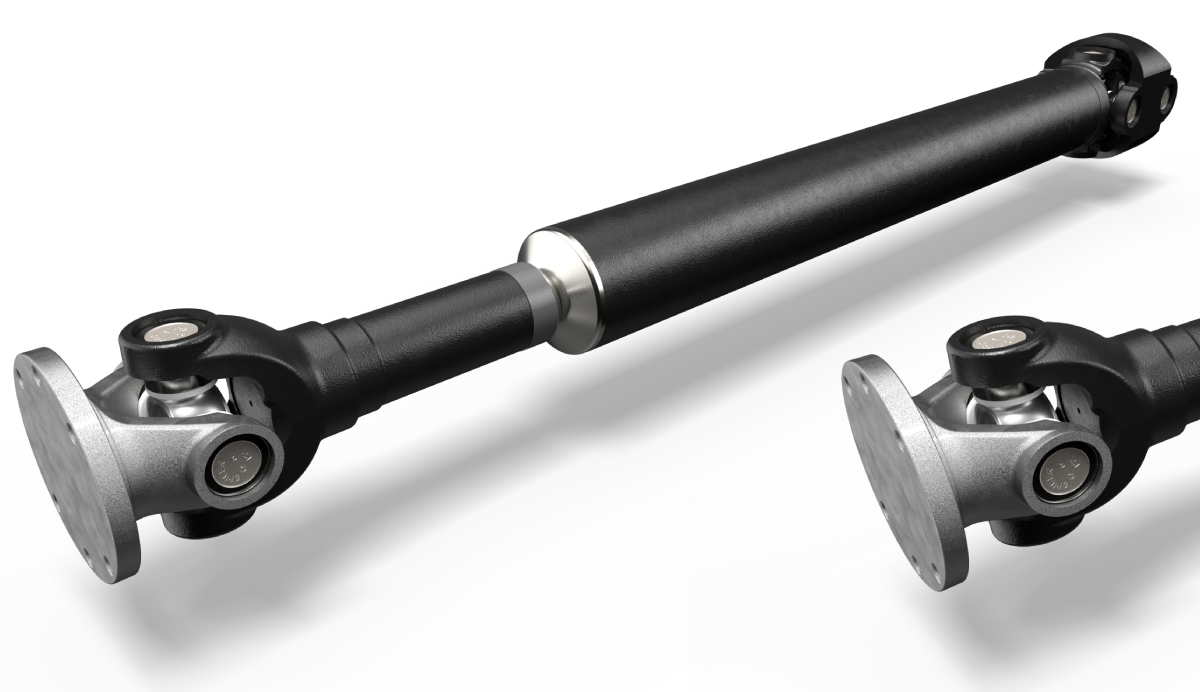

The 1310 Series is a Direct-Fit, Bolt-In Replacement

Jeep JK Driveshaft
Direct-fit bolt-in flange

This driveshaft features a smaller diameter, which will not interfere with the Jeep JK, JL or JT exhaust. In addition, you will enjoy the following advantages:

  • One-piece flange
    • Prevents run-out
    • Eliminates need for an adapter
    • Bolts to the stock Jeep axle
  • Optimized for 0" - 2" and a 2" - 4" lift
    • Ideal for larger tires
    • Offers improved ground clearance
  • Thicker tube than original equipment part
    • 50% thicker than OE shaft
    • Delivers added strength

Heavy Duty Upgrade - 1310 Series Driveshafts

Application Position Part # Length - Collapsed/Extended (Inches)
Jeep Wrangler JK (0-2” of lift) Front 10018230 34.8 / 39.4
Jeep Wrangler JK Front 10020345 35.9  / 40.5
Jeep Wrangler JL Front 10020345 35.9  / 40.5
Jeep Gladiator JT Front 10020345 35.9  / 40.5

Spicer® 1350 Driveshaft for Jeep

Jeep Driveshaft
All genuine Spicer® driveshafts include a Spicer transfer case yoke and hardware for easy installation.

Built from high-quality steel to deliver the ruggedness and durability you’re already getting in the axles in your Jeep JL or JT, 1350 Series driveshafts are engineered for applications that require high horsepower and torque.

  • Maintenance free SPL® 1350 Series double cardan
    • Lubed-for-life high performance SPL 1350 series u-joint
    • Non-greaseable lubed-for-life double cardan centering package
    • Improved lube retention and resistance to contaminants
    • No loss of operating angle potential
  • High strength tubing
    • Smaller diameter 2×0.120 DOM front shafts allow for improved clearance
    • 3×0.083 DOM rear shafts ensure no critical speed issues
  • Slip member
    • Front shafts feature strong 1.375" spline with a re-lube zerk in the seal
    • Rear shafts feature 1.5" spline with a re-lube zerk in the slip yoke
    • Lubed-for-life high performance SPL 1350 series u-joint at end of each slip yoke

Heavy Duty Upgrade - 1350 Series Driveshafts - for use with Ultimate Dana 60®

Application Position Part # Length - Collapsed/Extended (Inches)
Jeep Wrangler JK Front 10113216 31.8 / 34.9
Jeep Wrangler JK Rear 10113217 39.9 / 43.6
Jeep Wrangler JL Front 10097841 33.2 / 36.3
Jeep Wrangler JL Rear 10097842 41.4 / 45.1
Jeep Gladiator JT Front 10097841 33.2 / 36.3
Jeep Gladiator JT Rear 10132306 60.3 / 66.6

Heavy Duty Upgrade - 1350 Series Driveshafts

Application Axle Model Position Part # Length - Collapsed/Extended (Inches)
Jeep Wrangler JL Dana 30™ Front 10097839 36.5 / 39.6
Jeep Wrangler JL Dana 35™ AdvanTEK® Rear 10097843 44.8 / 48.4
Jeep Wrangler JL Dana 44™ AdvanTEK® Front 10097840 35.9 / 39.0
Jeep Wrangler JL Dana 44™ AdvanTEK® Rear 10097844 43.6 / 47.2
Jeep Gladiator JT Dana 44™ AdvanTEK® Front 10097840 35.9 / 39.0
Jeep Gladiator JT Dana 44™ AdvanTEK® Rear 10132305 62.5 / 68.7

Locate Driveshafts for the Jeep

Get the lift you’re looking for in your Jeep Wrangler or Gladiator: get in touch with the Spicer parts dealer in your area. And be sure to check out the full range of Dana-backed products designed to unleash the performance in your vehicle at DanaAftermarket.com

Jeep, Spicer, and Dana — legendary brands built stronger together. Read Our Story
