PROBLEM
“How can I ensure we install the pinion pilot bearings correctly to avoid truck downtime associated with premature bearing failure?”
SOLUTION

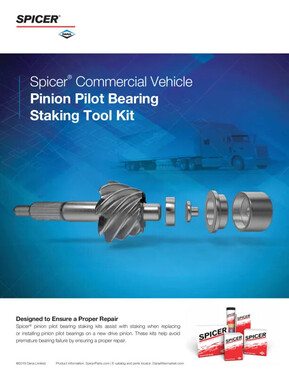

Spicer® pinion pilot bearing staking tool kits are now available for all Dana Aftermarket commercial vehicle drive axle models, and are designed to Dana specifications to ensure a proper repair.
Spicer® pinion pilot bearing staking kits assist with staking when replacing or installing pinion pilot bearings on a new drive pinion. These kits help avoid premature bearing failure by ensuring a proper repair.
Installing pinion pilot bearings correctly can help avoid any truck downtime associated with premature bearing failure. Now available for all Dana Aftermarket commercial vehicle drive axle models, Spicer® pinion pilot bearing staking tool kits are designed to Dana specifications to ensure a proper repair.
The kits below are broken down by axle model and axle ratio. Different staking tools are needed for different axle ratios due to the change in pinion stub end diameter and design.
For proper pinion pilot bearing staking procedure, download the Installation Instructions at SpicerParts.com/Library.

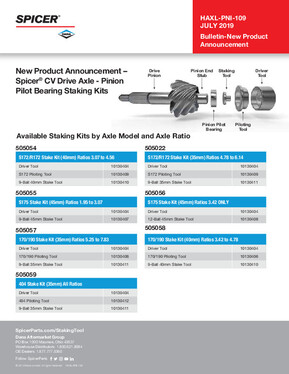

505054
| S172/R172 Stake Kit (40mm) Ratios 3.07 to 4.56 |
|---|
| Driver Tool |
10130404 |
| S172 Piloting Tool |
10130409 |
| 9-Ball 40mm Stake Tool |
10130410 |
505022
| S172/R172 Stake Kit (35mm) Ratios 4.78 to 6.14 |
|---|
| Driver Tool |
10130404 |
| S172 Piloting Tool |
10130409 |
| 9-Ball 35mm Stake Tool |
10130411 |
505055
| S175 Stake Kit (45mm) Ratios 1.95 to 3.07 |
|---|
| Driver Tool |
10130404 |
| 9-Ball 45mm Stake Tool |
10130407 |
505056
| S175 Stake Kit (45mm) Ratio 3.42 ONLY |
|---|
| Driver Tool |
10130404 |
| 12-Ball 45mm Stake Tool |
10130408 |
505057
| 170/190 Stake Kit (35mm) Ratios 5.25 to 7.83 |
|---|
| Driver Tool |
10130404 |
| 170/190 Piloting Tool |
10130406 |
| 9-Ball 35mm Stake Tool |
10130411 |
505058
| 170/190 Stake Kit (40mm) Ratios 3.42 to 4.78 |
|---|
| Driver Tool |
10130404 |
| 170/190 Piloting Tool |
10130406 |
| 9-Ball 40mm Stake Tool |
10130410 |
505059
| 404 Stake Kit (35mm) All Ratios |
|---|
| Driver Tool |
10130404 |
| 404 Piloting Tool |
10130412 |
| 9-Ball 35mm Stake Tool |
10130411 |
