Autonomous Delivery of Improved Traction Capability

PROBLEM
“Drivers are frustrated by frequent incidents of poor traction and a sense of instability during turns.”

SOLUTION
Spicer® Trac-Lok™ limited-slip differentials deliver improved vehicle handling by limiting wheel-slip rather than fully locking, and automatic traction engagement helps boost driver productivity.

Spicer Trac LokThe new Spicer® Trac-Lok™ limited-slip differential for S110, S111, S130 and S140 medium-duty truck drive axle applications provides improved traction, autonomously. This design innovation from Dana delivers improved productivity and vehicle handling within a lightweight, compact design.

For the most demanding applications, Dana also offers the option of a locking differential for Spicer S140 axles that delivers full-locking, maximum traction.

Limits wheel-slip for improved maneuverability

Spicer Trac-Lok benefits:

TracLok CalloutsBoosts productivity

  • Automatic traction engagement with no driver intervention
  • Smooth operation

Longer lifespan

  • Superior lifetime torque bias performance
  • No degradation

Seamless upgrade

  • No wiring or pneumatic connections
  • Retrofittable with existing S110, S111, S130 and S140 axles
  • No special lubricants or friction modifiers required

Optimized handling

  • Operates with gear separation forces when there are differences in wheel torques
  • Torque bias of ~3:1 in a slip event

Enhanced function

  • Limits wheel-slip rather than fully locking, for improved vehicle maneuverability
  • Freely differentiates in normal operating mode
  • Available locking differential for Spicer S140 axles delivers full 100% torque and power to both drive wheels

Models S110L and S111L

Model Current Service Part Number New Carrier Service Part Number
S110L   S110FTLR373CF
  S110FTLR391CF
S110FLR430CF** S110FTLR430CF
S110FLR410CF** S110FTLR410CF
S110FLR456CF** S110FTLR456CF
S110FLR478CF** S110FTLR478CF
S110FLR488CF** S110FTLR488CF
S110FLR513CF** S110FTLR513CF
  S110FTLR538CF
  S110FTLR557CF
  S110FTLR586CF
S110FLR614CF** S110FTLR614CF
  S110FTLR650CF
S110L488CF** S110TL488CF
Model Current Service Part Number New Carrier Service Part Number
S111L   S111FTLR373CF
  S111FTLR391CF
  S111FTLR430CF
  S111FTLR410CF
  S111FTLR456CF
  S111FTLR478CF
  S111FTLR488CF
  S111FTLR513CF
  S111FTLR538CF
  S111FTLR557CF
  S111FTLR586CF
  S111FTLR614CF
  S111FTLR650CF



Service Kit BOM Item Description Quantity
505043** 10107465* Spicer® Trac-Lok™ Limited Slip Diff. 1
134511 Capscrew - Hex 10
10079935 Bearing Cone 1
10079936 Bearing Cup 1



Old Service Carrier Number New Side Gear – Qty 2 New Primary Gear
S110FLR430CF** 130522 514147
S110FLR410CF** 130522 514254
S110FLR456CF** 130522 514114
S110FLR478CF** 130522 514115
S110FLR488CF** 130522 513978
S110FLR513CF** 130522 514140
S110FLR614CF** 130522 514252
S110L488CF** 130522 513978
* Not sold separately
** Kit 505043 cannot be used in old S110 Service Carriers. To use Kit 505043, the primary gear & side gear must be replaced. See charts above.

Model S130L

Model Current Service Part Number New Carrier Service Part Number
S130L S130FLR373CF S130FTLR373CF
S130FLR391CF S130FTLR391CF
S130FLR410CF S130FTLR410CF
S130FLR430CF S130FTLR430CF
S130FLR456CF S130FTLR456CF
S130FLR478CF S130FTLR478CF
S130FLR488CF S130FTLR488CF
S130FLR513CF S130FTLR513CF
S130FLR538CF S130FTLR538CF
S130FLR557CF S130FTLR557CF
S130FLR586CF S130FTLR586CF
S130FLR614CF S130FTLR614CF
S130FLR650CF S130FTLR650CF



Service Kit BOM Item Description Quantity
505005 10101058* Spicer® Trac-Lok™ Limited Slip Diff. 1
134511 Capscrew - Hex 10
132821 Pin - Dowel 2
10079935 Bearing Cone 1
10079936 Bearing Cup 1
* Not sold separately

Model S140L

Model Current Service Part Number New Carrier Service Part Number
S140L   S140L331CF
  S140L358CF
  S140L373CF
  S140L391CF
  S140L410CF
  S140L430CF
  S140L456CF
  S140L488CF
  S140L529CF
  S140L557CF
  S140L614CF
  S140L650CF



Service Kit BOM Item Description Quantity
505004 10101132* Spicer® Trac-Lok™ Limited Slip Diff. 1
133896 Screw - Hex 10
132821 Pin - Dowel 2
10079935 Bearing - Tapered Roller Cone 1
10079936 Bearing - Tapered Roller Cup 1

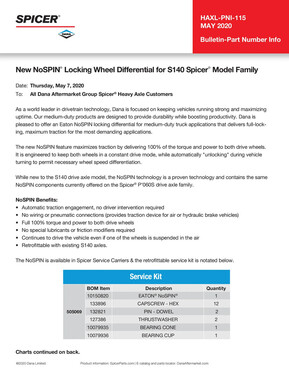

Model S140 with NoSPIN

Service Kit BOM Item Description Quantity
505069 10150820* EATON® NoSPIN®† 1
133896 CAPSCREW - HEX 12
132821 PIN - DOWEL 2
127386 THRUSTWASHER 2
10079935 BEARING CONE 1
10079936 BEARING CUP 1

Find where you can place your order now on Dana’s streamlined ecommerce and parts locator platform, DanaAftermarket.com.

* Not sold separately
† Available with an Eaton® NoSPIN® locking differential. Eaton and NoSPIN are trademarks of Eaton Corporation.
