U-Joints that Perform in the Lab and on the Road

PROBLEM
“With high-efficiency truck configurations placing increased stress on drivelines, and downspeeding generating higher torque stresses on the drivetrain, I need u-joints that are up to the challenge.”

SOLUTION
Fatigue tests prove that Spicer® commercial vehicle u-joints consistently outperform the competition, delivering maximum lifetime and minimal downtime.

CV U-JointsSpicer® commercial vehicle u-joints are engineered to ensure peak performance. On the road or in the lab, they consistently outperform the competition. With these commercial vehicle u-joints, you’ll experience the Spicer advantage of:

  • Better performance
  • Longer life
  • Lower operating costs

When it’s your commercial vehicle—and your livelihood—on the line, don’t trust anything less than genuine Spicer u-joints!


Premium Spicer Life® Series U-Joints

Animated u-jointNo other u-joints are better equipped to meet the needs of today’s high-efficiency trucks than Genuine Spicer Life® Series (SPL®) u-joints. These u-joints are designed to withstand the increased stress that high-efficiency truck configurations place on the driveline. Plus, they’re equipped with High Power Density™ (HPD™) features that extend product life and outperform the competition:

  • Thrust washer: improves lubrication, eliminates friction, and extends life
  • Bearing package: larger rollers for a 40% increase in bearing capacity
  • Spicer Ultra-Premium Synthetic Grease: increases bearing life by more than 30%
  • Multi-lip Seal: Viton® material extends life, improves wear capacities and heat resistance, optimizes lube retention, and protects against external contaminants
  • Seal Guard: Provides protection against external contaminants

Discover the full line of Spicer u-joints engineered for the commercial vehicles you depend on.

When You Have the Need to Downspeed

While engine downspeeding offers increased fuel economy and decreased emissions, the faster axle ratios needed to accommodate the lower RPMs result in additional torque in the drivetrain, placing much higher stresses on the main driveshaft, axles, and inter-axle shaft.

The right driveshaft and inter-axle shafts with robust and durable components from Spicer can handle the added input torque with even greater reliability. Spicer Life Series u-joints—in particular, the SPL® 350—are engineered, tested, and proven to meet the torque demands being placed on drivetrains. Their exclusive design accommodates faster axle ratios without sacrificing u-joint life.

Spicer Life Series u-joints performed more than 2X better than the closest competitor!

Journal Cross

Engineered with a cold-formed body to ensure better wear and overall strength.

Bearing Cups

Heat-treated for strength; precision-ground and case-hardened for durability.

Thrust Washers

Friction and heat can cause premature failure. The Spicer thrust washer eliminates metal-to-metal contact/friction, prevents wear, and lowers the overall operating temperature.

Lubrication Options

Get longer life and lower maintenance costs for your u-joint with two lubrication options. Choose from a greaseable u-joint or a service-free, lubed-for-life u-joint. Periodic inspection is always recommended.

Seal Guard

High-impact material for optimal first-level protection against contaminants.

Premium Viton® Multi-Lip Sealing Package

This premium sealing package includes a Viton® multi-lip seal, garter spring, seal guard, and a needle bearing spacer. Keeping the grease in and contaminants out is the key to maximizing u-joint bearing life.

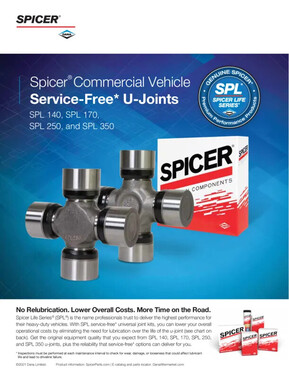

SPL® U-Joints in Service-Free Options

SPL 170 and SPL 250 universal joints are also available in service-free* options, which are lubricated for the life of the part. Permanently lubricated u-joints help keep your overall operation costs low while still offering the durability and dependability you expect from Spicer. Service-free options are ideal for heavy-haul applications and are capable of meeting the requirements of future fast-axle ratios.

* Inspections must be performed at each interval to check for wear, damage, or looseness that could affect lubricant life and lead to driveline failure.

Popular
SPL170-4X SPL250-3X

Spicer 10® Series U-Joints: Tested and Proven for Top Performance

10 Series U-JointsSpicer 10® Series u-joints are completely interchangeable with existing parts, so you get total product compatibility with no change in part numbers. They’re engineered for a tighter fit, delivering:

  • Better balance capability
  • Reduced driveline vibration
  • Lower maintenance costs

We do this by combining a computer-designed bearing plate with a patented manufacturing process that closely controls tolerances. It’s this commitment to exceptional design and production that has made Spicer the name people have trusted for more than a century.

The Competition Doesn’t Even Come Close

When it comes to torsional fatigue capability, the competition doesn’t even come close to the Spicer 10® Series u-joint. These u-joints are consistently stronger, helping ensure longer life and better performance.  Plus, zerks are positioned at 180°, so lubrication can be done without rotating the driveshaft. You save maintenance time and costs!

Spicer 10 Series u-joints performed more than 5X better than the closest competitor!

Journal Cross

Forged with high-quality steel, precision heat-treat- ing and case-hardening to very specific levels, ensuring optimal and consistent strength and durability.

Zerks positioned on both sides

Allows for easy and thorough lubrication to maximize the life of the u-joint.

Other key features include:

  • One zerk is always exposed, greatly reducing the chance of missed lubrication
  • Case hardening inside and out increases durability, ruggedness and strength
  • Long-life seals resist heat and maintain lubrication at all speeds
Popular
5-280X 5-674X

Learn More About Spicer Commercial Vehicle U-Joints

For more information about Spicer u-joints, download our product literature. Then get in touch with your Spicer parts distributor and experience the Spicer advantage for yourself!

Check out Dana’s streamlined eCommerce platform, DanaAftermarket.com, to access the parts information you need, check availability, place and track your orders, and more, all in one place.
